Week 3: Data Processing (cont.)
March 18, 2026
Hi everyone, and welcome back to my blog! This week I continued to work on data processing, which is one of the main parts of my project.

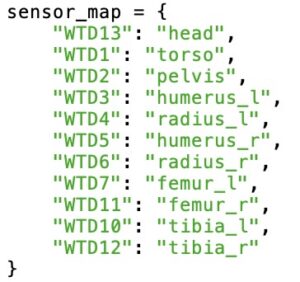

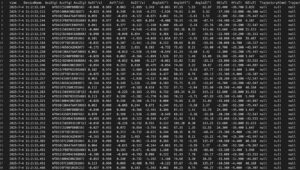

Last week I started writing the code to convert my Witmotion sensor data into a format that the OpenSim software can use (read my last blog for more details!). However, there were still some minor errors in my code from last week. One problem was that my headers were incorrect. Instead of naming the sensors body parts (e.g. head, pelvis, etc), my headers were still left in the WitMotion format of WTD1_Q0, WTD10_Q0, WTD11_Q0, etc. OpenSim couldn’t recognize the sensors and wouldn’t read the file properly because of that. To combat that, I added a sensor map that mapped each sensor to a body part as shown below.

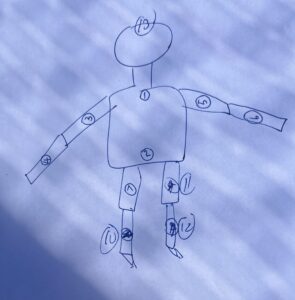

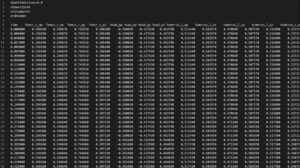

The conversion script should be good now. I was able to convert my raw Witmotion CSV data into an OpenSim-compatible .sto file, with properly formatted time columns and quaternion orientation data for each sensor. Each sensor is now labeled according to its corresponding body segment using the sensor map, which allows OpenSim to correctly interpret the motion data. (Shown below)
After fixing up the minor bugs and tweaks, I attempted to load the motion onto the model. However, I still had issues with the IMU Placer tool. Even though I loaded the motion and data into the IMU Placer, the software wasn’t letting me play the run button. I will need to investigate deeper about why that happens.
I’m aiming to finish this data processing step by next week—come back then for an update!
